DESCRIPTION

Basic Info

Model NO.	XY-M6
Application of Classification	High Resolution Ink Jet Printer
Working Patterns	On-Line
Supplies	Ink
Packaging	Box
Model No	M6
Spray Distance	2mm-5mm
Speed	up to 70m
Temperature	0 ~38°c
Print Height	1-12.7mm
Spray Printing Height	2mm-13mm (Adjustable)
Serial Number	1-8
Ink Cartridge Capacity	50ml
Spray Printing Line Number	One to Seven Lines (Adjustable)
Ink Color	Black, White, Red, Blue, Yellow, Green
Printing Height	2-12.7mm(It Can Adjust.)
Printing Distance	2-5mm
Printing Accuracy	600dpi
Print Type	Picture,Qr Code ,Date,Logo,etc.
Print Material	Plastic,Film,Carton,Glass,Tube,Pipe,Paper,etc
Transport Package	Wooden Box
Specification	29*17*15cm
Trademark	xueying
Origin	China
Production Capacity	40m/Min

Product Description

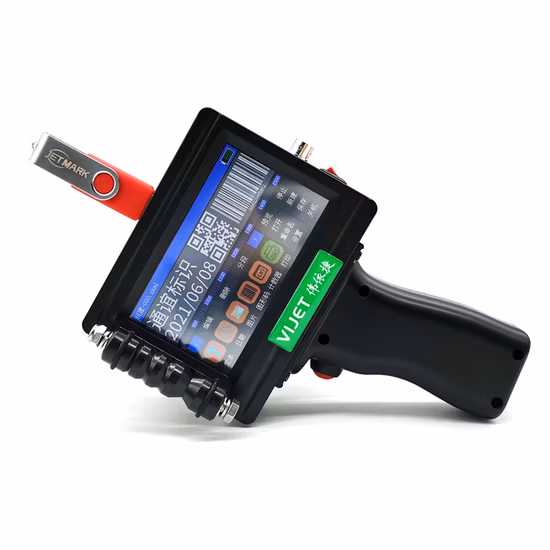

Manual Handheld Code Printer Machine Portable Handheld Inkjet Coding Machine suitbale for plastic bag, PE PVC bottles, carton boxe, thin cable, steelpipe, tube, metal materials, boards, smooth stone, electronic, automotive parts etc. This inkjet coding system print content: Text, Barcode, QR code, Number, Time, Date, Counter, Pictures, Symbols etc. 1) Can adopts coding ink roll to print product clear, transfer fast, good adhesivity.
2)It is used to all kings of vertical, horizontal continuous packing machines to print production date, enpity date, lot NO. ect.

Features
1.300 DPI High Resolution Inkjet Coding Print / Removable Battery.
2.Printing dot matrix numbers, dates, times, QR Code, text, graphics, barcode..
3.Printing single and multi-line contents, maximum arrival 6 lines..
4.Adjustable font size and type..
5.Print up to not limit character on one line..
6.Easy operation, free maintenance. Only need press-to-Print.

Detailed Photos

After Using the machine,please take out the ink cartridge from the machine and put it in the clip of the ink cartridge to avoid damaging the ink cartridge.Spray Code Button.After editing the date,please press the red print button to start inkjet operation.
Synchronizer is to be able to accurately spray code,to prevent jitter or uneven movement and printing failure.

It can realize multi functional operation,and the photoelectric interface can realize pipeline operation and code spraying,and improve the production efficiency.

Product Parameters

Model	M6 Hand inkjet printer machine
Printing height	2-12.7mm(It can adjust.)
Printing distance	2-5mm
Printing accuracy	600DPI
Ink cartridge capacity	70ml
Print type	Picture,QR code ,date,logo,etc.
Print material	Plastic,film,carton,glass,tube,pipe,paper,etc.
Store	Can use USB store.
Weight	1.2kg

Specification

The printing range: 360 degree omni-directional printing, meets the needs of production
Print font: Font GB, Pinyin input method, touch online editing, no need to connect computer, easy to operate
Jet printing fonts: High clear print fonts dot matrix font, a variety of Chinese and English font
Spray printing graphics: A variety of trademark design, graphics can be imported through U-disk

Spray printing accuracy: 300DPI

Spray printing line number: One to seven lines (adjustable)

Spray printing height: 2mm-13mm (adjustable), can be increased to 50mm by adding other plus nozzle

Printing bar code: Bar code, two-dimensional bar code

Spray distance: 2mm-5mm jet printing effect is the best

Serial number: 1-8 variable sequence number

Automatic printing: Date, time, batch number, and serial number (with the time change)

Stored information: The system can store more than 1000 pieces information (can be inserted U disk to store information)

Information length: Each message can be printed in more than 2000 kinds of fonts, the length is unlimited

Jet printing speed: Up to 70m / min (continuous printing), spray printing speed will not change by the increase of the number of lines

The use of ink: Environmental protection printing ink, water-based ink, oily ink

Ink color: Black, red, blue, yellow, green

Ink cartridge capacity: 50ml, a box of ink can be used to spray 80 million characters (2mm)

External interface: DB9, DB15, USB, optical interface

Battery: 2500mAh DC16.8V lithium battery

Working time: 10 hours (after full charge)

Standby time: 20 hours

Control panel: Touch screen

Power consumption: The average power consumption is less than 5W

Temperature: 0 ~38°C

Humidity: 10%~80%

Size: 130 x 128 x 200mm

Machine weight: 1.1kg
