DESCRIPTION

Basic Info

Model NO.	SV-LN347
Kind	Manual Focus Lens
Certification	CE, FCC
Feature	Waterproof / Weatherproof, High Definition, Mini Size, Auto BLC
Effective Distance	10-30m
Sensor Size	1/3 inch
Remote Control	Without Remote Control
Image Sensor	1/3" Panasonic CMOS(Mn34229)
Total Pixels	1956(H) × 1266(V)Approx. 2.47m Pixels
Effective Pixels	1944(H) × 1092(V)Approx. 2.12m Pixels
Resolution	Digital:1080P(30),720p(30fps)
Min-Illumination	Color:Dss:0.0017lux, Bw Dss: 0.00008 Lux
Digital Shutter	Auto/Manual(1/50/60-1/60000set)
N/R(dB)	>48
Auto (Wb)	Auto/Auto Cxt/Preset/Manual
WDR	off/Low/Middle/Hight; WDR Snr; 120dB
Blc	off/Blc
Hli	off/Hlc
Defog	off/on, Low/Middle/High
3D-Dnr	off/Low/Middle/High
Mirror	Left/Right/Flip Upside Down
Sens-up	off/X2/X4/X8/X16/X32
Transport Package	Carton Packing
Specification	ce, fcc
Trademark	OEM
Origin	Shenzhen, China

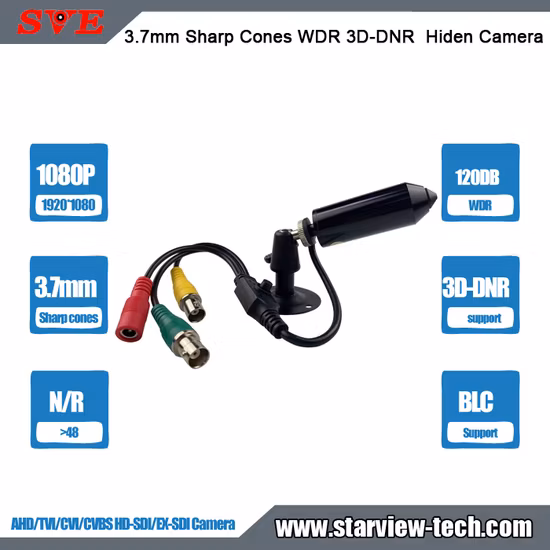

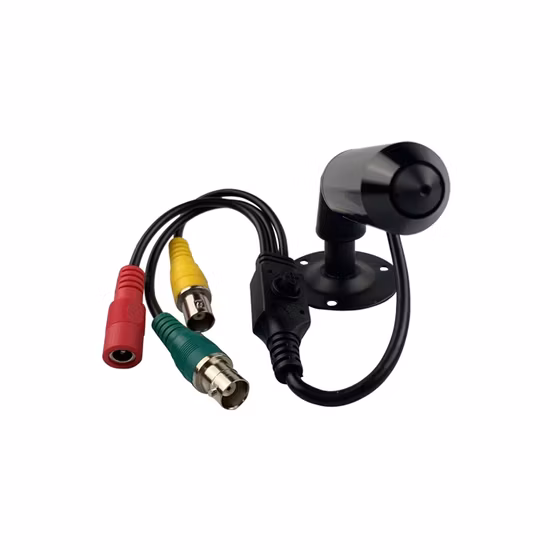

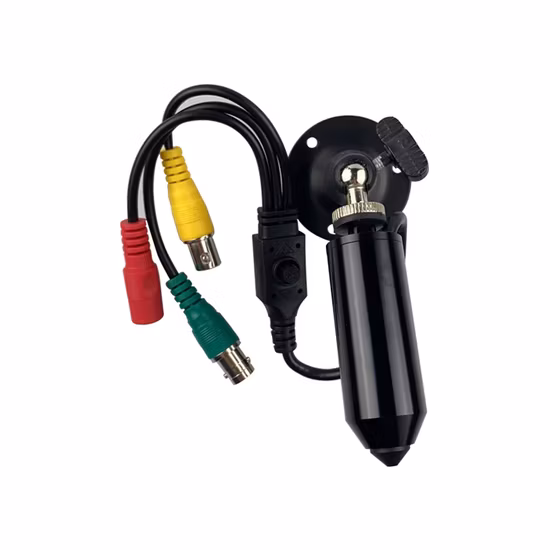

Product Description

Key Features

1. Smart OSD (menu) operating system. Powerful DSP memory function. No data loss is available without power loss
2. High resolution, super sensitivity: using Japanese Panasonic SENSOR, it has good color reproduction and provides clearer visual effects, 1/3 size. FULL SCREEN 1080P HD image can be displayed, adapting to changes in the color temperature of the light source in a wider color temperature range. Using unique digital processing technology, it improves the sensitivity of target shooting and reduces the unevenness and defect of optical signal processing for low light source environment.
3. HLI (Bright Light Suppression) is also a super eclipse: targeting areas of bright light and compensating for the correct exposure choice in a specific area.
4. WDR (Intelligent Wide Dynamic Range Compensation) (High/Medium/Low): If there is a large contrast between light and dark in the same frame, it will cause overexposure and too dark, and the intelligent WDR function can significantly improve the picture.
5. BLC (Super Backlight Compensation): When there is a bright light source on the back of the subject, the dark part of the subject caused by the backlight can be backlit to compensate for the darker part of the subject, so that the subject is more vivid and clear.
6. OSD 5 provides user-friendly menus for buttons, supports key switching AHD/TVI/CVI/CVBS signal output, and burns different software programs to output HD/EX-SDI signals
7. 3D digital noise reduction, super sensitivity (accumulative).
8. Support coaxial control signal function
9. Wide voltage setting: DC power supply, voltage range between 10V~16V normal operation.



Features:

Model No.	SV-LN347
Image Sensor	1/3" Panasonic CMOS(MN34229)
Total Pixels	1956(H) × 1266(V)Approx. 2.47M pixels
Effective Pixels	1944(H) × 1092(V)Approx. 2.12M pixels
Resolution	Digital:1080P(30),720P(30fps)
Min-illumination	Color:DSS:0.0017LUX, BW DSS: 0.00008 LUX
Digital shutter	AUTO/MANUAL(1/50/60-1/60000set)
N/R(dB)	>48
Auto (WB)	Auto/Auto cxt/Preset/Manual
WDR	Off/Low/Middle/Hight; WDR SNR; 120DB
BLC	Off/BLC
HLI	Off/HLC
Defog	Off/On, Low/Middle/High
3D-DNR	Off/Low/Middle/High
Mirror	left/right/Flip upside down
SENS-up	Off/X2/X4/X8/X16/X32
AGC	0-10 steps
Language	Chinese/English
Lens	Motor/DC/Manual/ fixed
Signal output	AHD/TVI/CVI/CVBS-1Vp-p/HD-SDI/EX-SDI
Lens	3.7mm Sharp cones
Power supply (V)	DC12V
Working temperature(°C)	-0°C~+60°C
Consumption(W)	1.2W
Size	79.5mm*23.0mm
Gross weithg(g)	80g

Connection operations
DC12V interface connected to DC12 power adapter (power supply DC12V - ≥1000MA); The BNC mother station is connected to the DVR, and then connected to the monitor with an HDMI cable from the DVR, turn on the monitor, the power supply is normal and the DC drive cable is connected, and the lens is screwed to see the surveillance screen.

Menu and dial operations:
Menu settings can be made via the OSD button of the in-line control. "UP", "DOWN", "LEFT", "RIGHT" AND "SET" ARE "PRESS UP", "PRESS DOWN", "PRESS LEFT", "PRESS LEFT" AND "PRESS STRAIGHT TO CONFIRM" RESPECTIVELY; Press the OSD key "SET" key to switch the signal once after 2 seconds

Dimensions: (unit: mm, without stand)
